- General Information
- Manufacturer
- Fortinet, Inc
- Manufacturer Website Address
- http://www.fortinet.com
- Brand Name
- Fortinet
- Product Line
- FortiAP
- Product Type
- Wireless Access Point

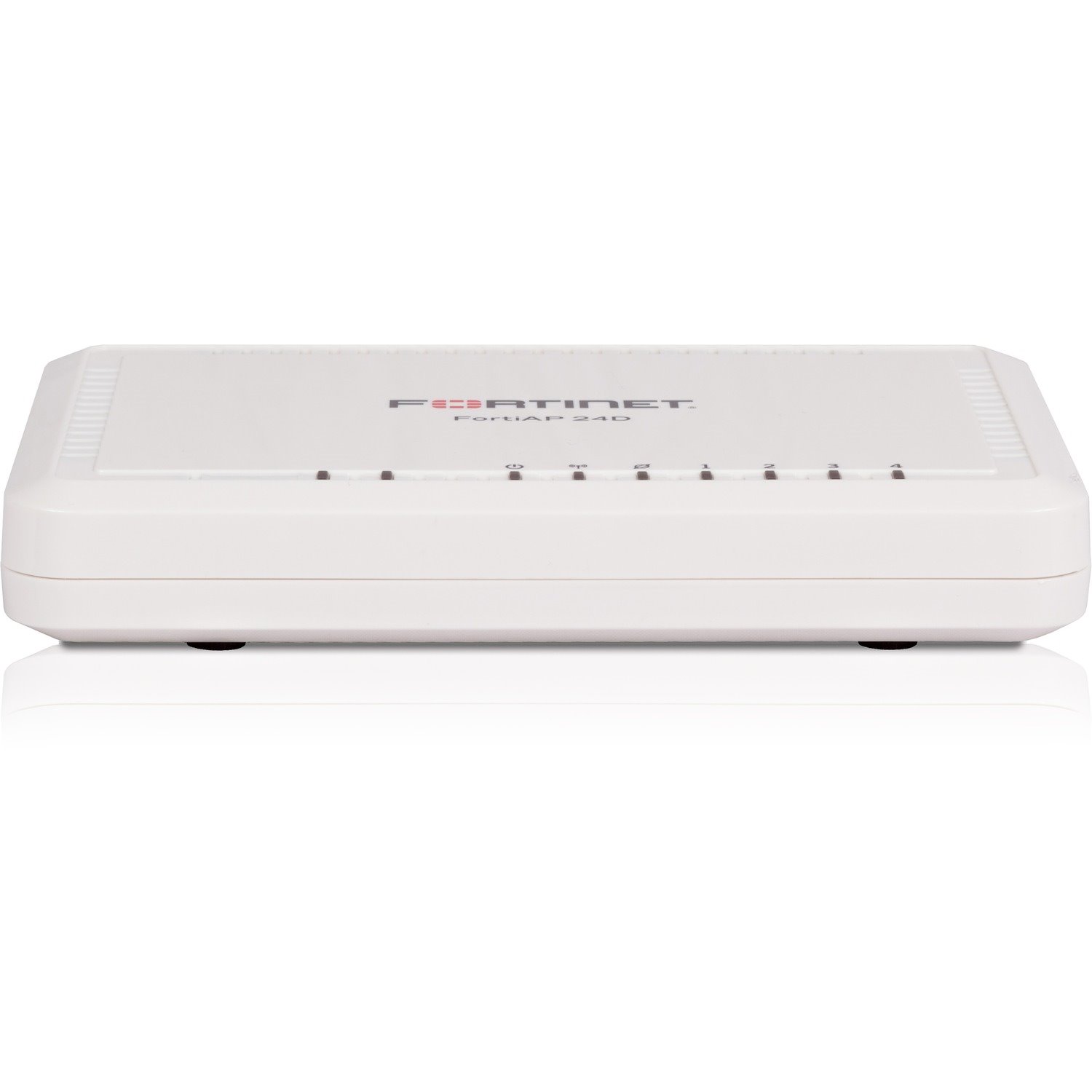

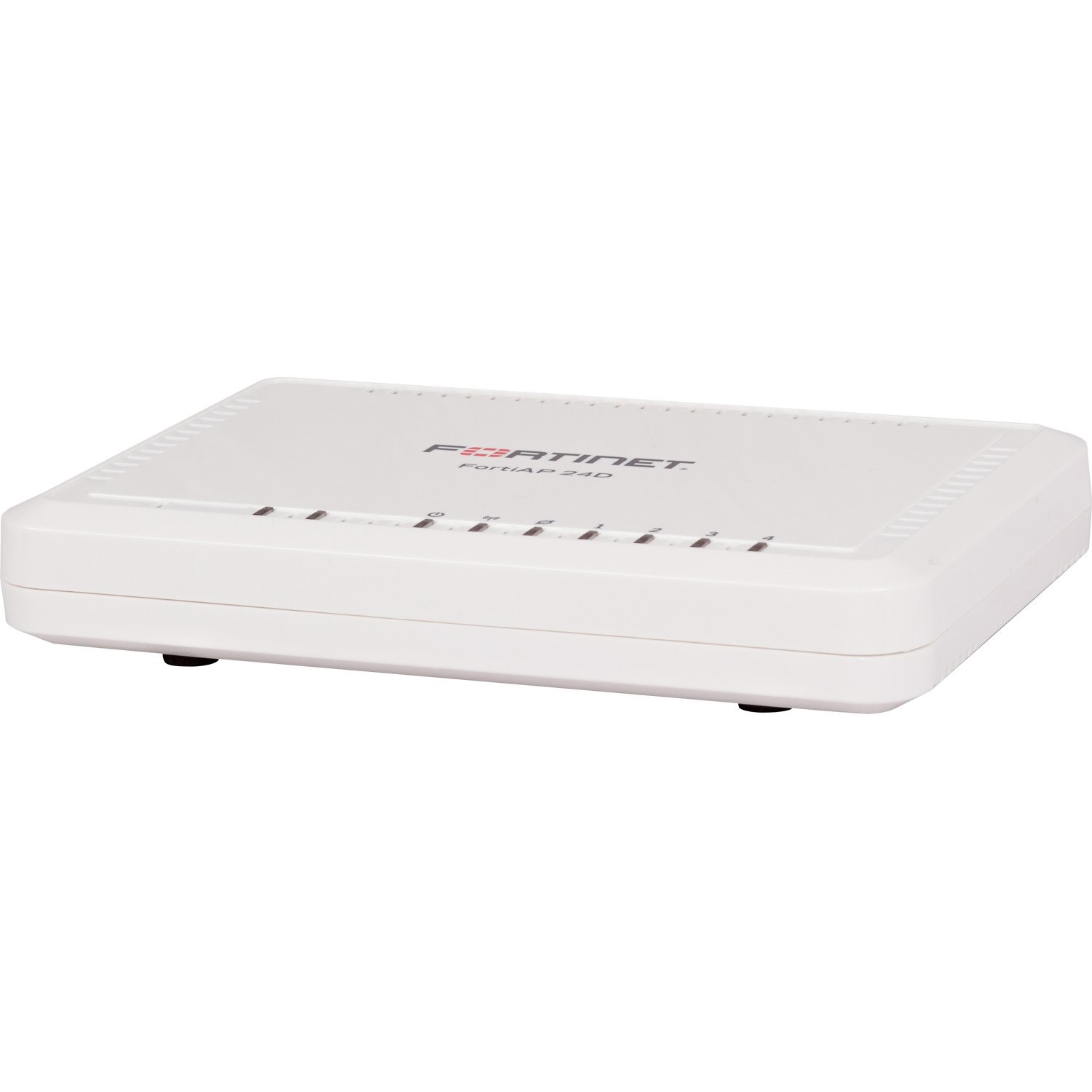

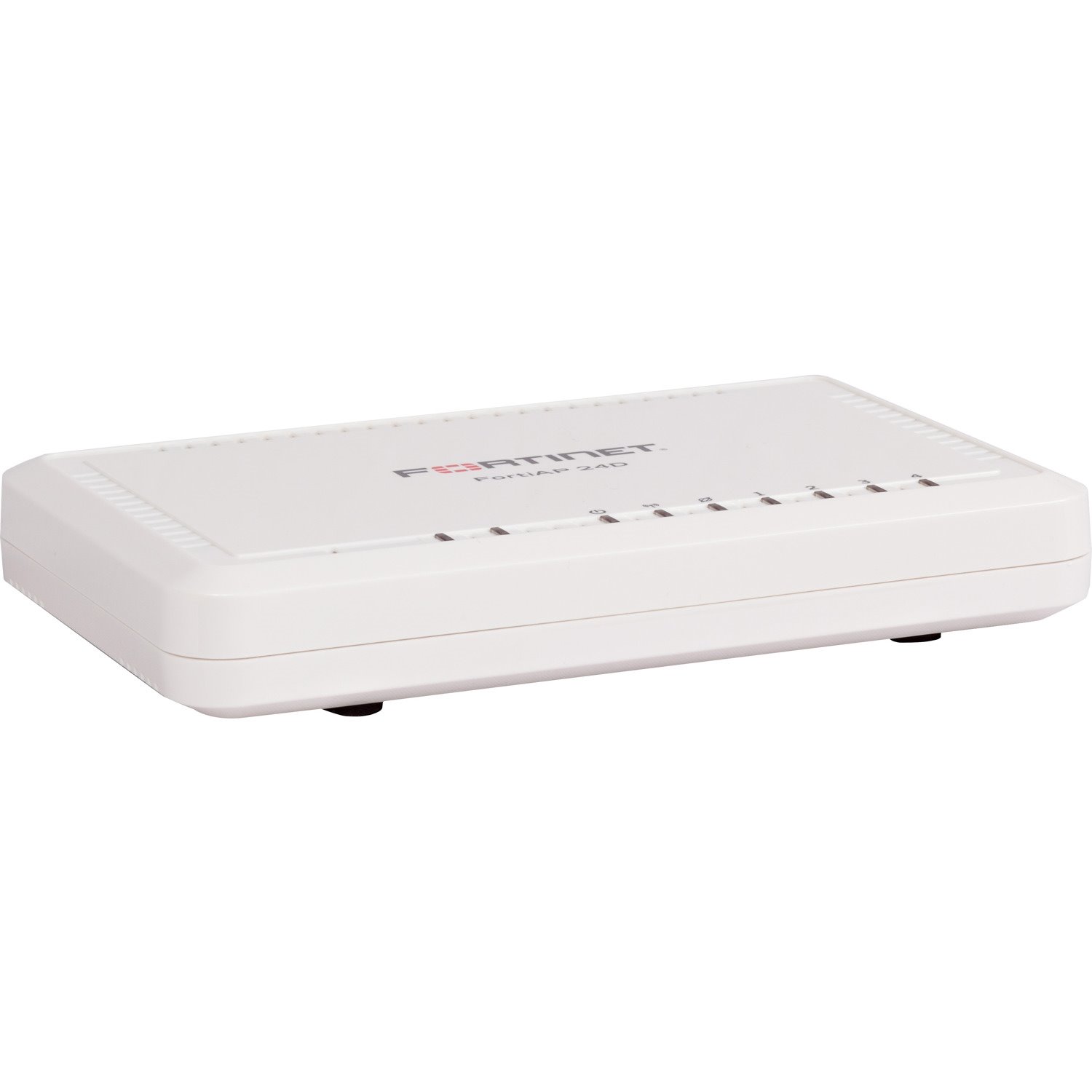

Thin Wireless LAN Access Points
FortiAP are thin access points, delivering secure, identity-driven WiFi access for your enterprise network, managed centrally by the integrated WLAN controller of any FortiGate® security appliance. With the integration of the wireless controller functionality into the market leading FortiGate appliance, Fortinet delivers a true Unified Access Layer. This enables you to easily manage wired and wireless security from a Single Pane of Glass management console and protects your network from the latest security threats.
Indoor Enterprise WLAN Deployment
FortiAP indoor WLAN access points come in a range of form factors and performance profiles, with a model to suit any indoor enterprise wireless LAN deployment. Smoke detector style models provide a discreet look to prevent tampering. Other models are equipped with external antenna connectors, for use with directional or panel antennas, while the plenum-rated models support the extended temperature range required for installation in ceilings.
- Technical Information
- Wireless LAN Standard
- IEEE 802.11a/b/g/n
- Frequency Band
- 2.40 GHz
- 5 GHz
- Total Number of Antennas
- 2
- Number of Internal Antennas
- 2
- Wireless Transmission Speed
- 300 Mbit/s
- MIMO Technology
- Yes
- Interfaces/Ports
- Ethernet Technology
- Ethernet
- Fast Ethernet
- Gigabit Ethernet

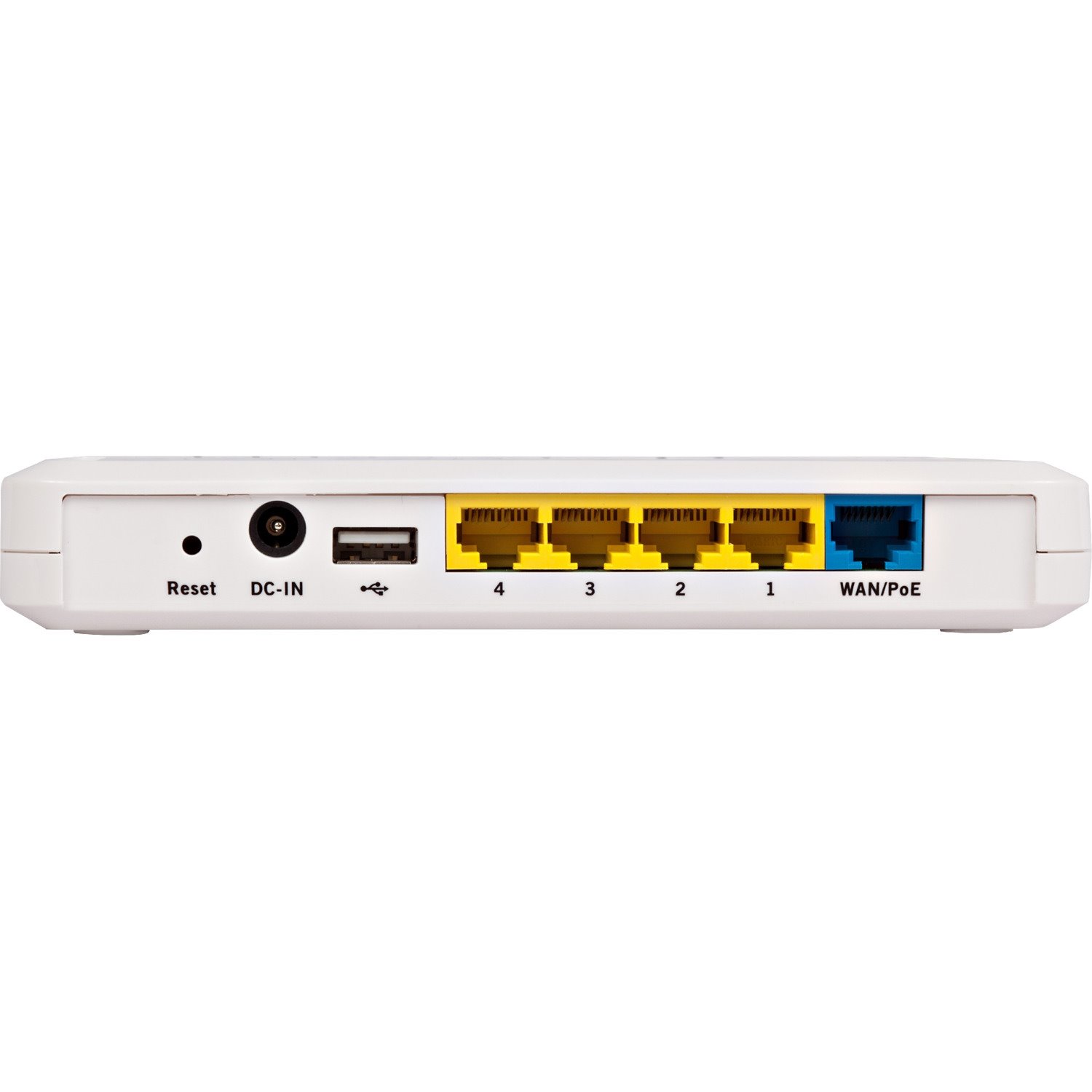

- Number of Network (RJ-45) Ports
- 5
- PoE (RJ-45) Port
- Yes
- VGA
- No
- HDMI
- No
- USB
- Yes
- Powerline
- No
- Management Port
- No
- Physical Characteristics
- Form Factor
- Wall Mountable
- Height
- 25.9 mm
- Width
- 169.9 mm
- Depth
- 111 mm
- Weight (Approximate)
- 226.8 g
