- General Information
- Manufacturer
- Fortinet, Inc
- Manufacturer Website Address
- http://www.fortinet.com
- Brand Name
- Fortinet
- Product Line
- FortiGate
- Product Type
- Network Security/Firewall Appliance

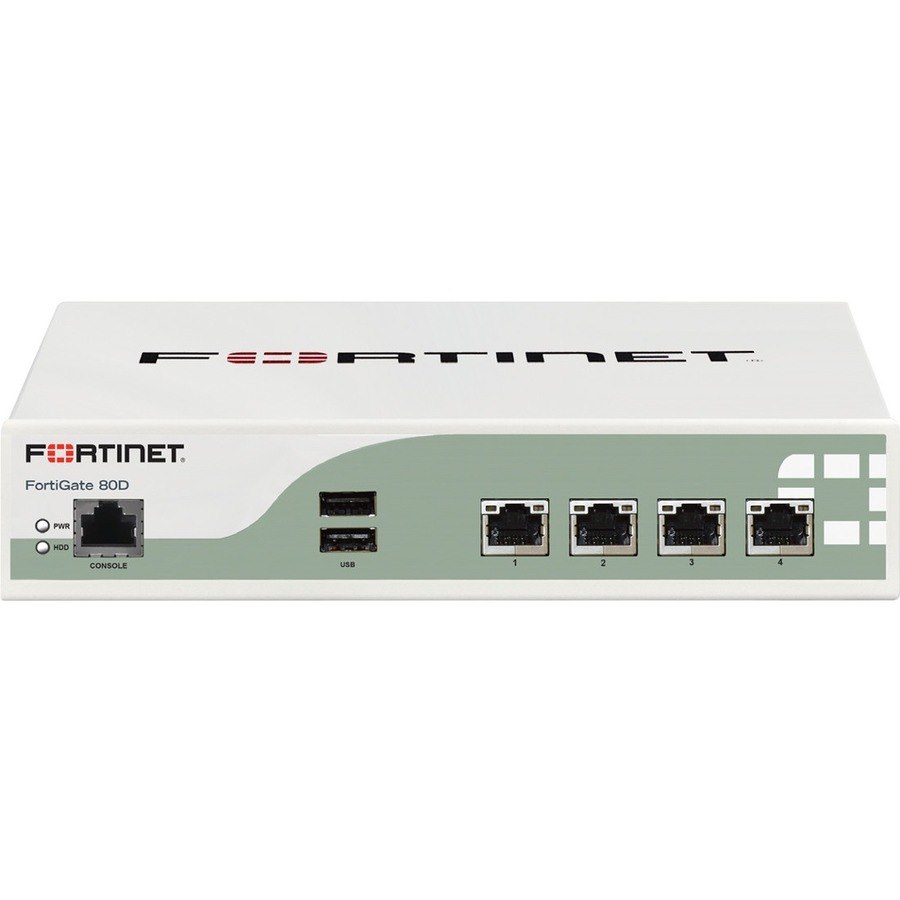

The FortiGate-80D is compact, cost effective, all-in-one security appliances that deliver Fortinet's Connected UTM. Ideal for small business, remote, customer premise equipment (CPE) and retail networks, these appliances offer the network security, connectivity and performance you need.
High Performance Network Security
Built on the foundation FortiOS 5, the FortiGate-80D series provides an integrated set of essential security technologies to protect all of your applications and data. You get advanced threat protection, including firewall, application control, advanced threat protection, IPS, VPN, and web filtering, all from one device that's easy to deploy and manage. With our FortiGuard® security subscription services you'll have automated protection against today's sophisticated threats.
- Technical Information
- Virtualization
- 32 x Max Managed FortiAPs (Total)
- 16 x Max Managed FortiAPs (Tunnel)
- 1500000 x Concurrent Sessions (TCP)
- 22000 x New Sessions/Sec (TCP)
- 5000 x Firewall Policies
- 200 x Gateway-to-Gateway IPSec VPN Tunnels
- 1000 x Client-to-Gateway IPSec VPN Tunnels
- 200 x Concurrent SSL-VPN Users (Recommended Max)
- 10 x Virtual Domains (Default/Max)
- 100 x Max Number of FortiTokens
- 200 x Max Number of Registered FortiClients
- Firewall Protection Supported
- Application Control
- Threat Protection
- Intrusion Prevention
- Web Content Filtering
- Antivirus
- Anti-spam
- AntiBot
- Interfaces/Ports
- Total Number of Ports
- 4
- DSL Port
- No
- USB
- Yes
- Serial Port
- No
- Modem
- No
- PoE (RJ-45) Port
- No
- Management Port
- Yes
- Number of Network (RJ-45) Ports
- 4
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Standard
- 10/100/1000Base-T
- Wireless Specifications
- Wireless LAN
- No
- Management & Protocols
- Manageable
- Yes
- Storage
- Hard Drive Capacity
- 16 GB
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Physical Characteristics
- Form Factor
- Desktop
- Rack-mountable
- Height
- 40.9 mm
- Width
- 210.1 mm
- Depth
- 133.1 mm
- Weight (Approximate)
- 1.04 kg
