- General Information
- Manufacturer
- Fortinet, Inc
- Manufacturer Website Address
- http://www.fortinet.com
- Brand Name
- Fortinet
- Product Line
- FortiGate
- Product Type
- Network Security/Firewall Appliance
Today's network security threats have evolved into highly sophisticated assaults using multiple attack vectors to penetrate networks and steal valuable information. Small and medium enterprises and remote branch offices of larger enterprises face these attacks while storing and transferring increasing amounts of sensitive data across their networks. To ensure the security of this sensitive data, legislation such as PCI, HIPAA, Sarbanes-Oxley, and others have warranted the implementation of security measures.
- Technical Information
- Functionality
- Security Monitoring
- Virtualization
- 25000000 x Concurrent Sessions (TCP)
- 22000 x New Sessions/Sec (TCP)
- 10000 x Firewall Policies (System)
- 5000 x Firewall Policies (VDOM)
- 1500 x Gateway-to-Gateway IPSec VPN Tunnels (System)
- 1500 x Gateway-to-Gateway IPSec VPN Tunnels (VDOM)
- 5000 x Client-to-Gateway IPSec VPN Tunnels
- 200 x Concurrent SSL-VPN Users (Recommended Max)
- 10 x Virtual Domains
- Firewall Protection Supported
- Application Layer Filtering
- Antivirus
- Malware Protection
- Anti-spam
- P2P Blocking
- Web Content Filtering
- Vulnerability Assessment
- Worm Scanning
- Anti-phishing
- Malicious Source IP Address Blocking
- Interfaces/Ports
- Total Number of Ports
- 21
- DSL Port
- No
- USB
- Yes
- Serial Port
- No
- Modem
- No
- PoE (RJ-45) Port
- No
- Management Port
- Yes
- Number of Network (RJ-45) Ports
- 21
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Wireless Specifications
- Wireless LAN
- No
- Management & Protocols
- Manageable
- Yes
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Physical Characteristics
- Stackable
- No
- Compatible Rack Unit
- 1U
- Form Factor
- Desktop
- Rack-mountable
- Height
- 43.2 mm
- Width
- 431.8 mm
- Depth
- 292.1 mm
- Weight (Approximate)
- 4.26 kg
- Miscellaneous
- Package Contents

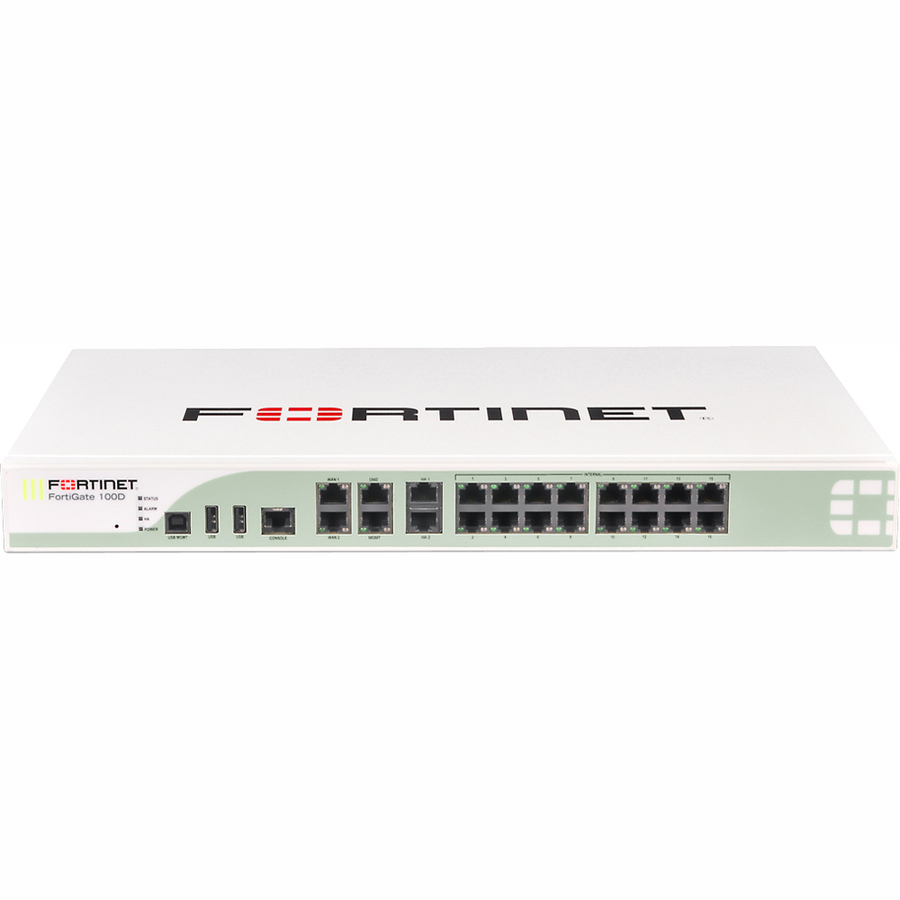

- FortiGate 100D Firewall Appliance
- Quick Start Guide
- Tools and Documentation CD
- Power Cable
- Ethernet Cable
- USB Cable
- Console Cable
- 4 x Rubber Feet
- 2 x Rack-Mount Brackets
- 8 x Bracket Screws
- Certifications & Standards
- ICSA Labs: Firewall, IPSec, IPS, Antivirus, SSL VPN
- FCC Part 15 Class A
- UL/cUL
- C-Tick
- VCCI
- FCC
- CB
- CE
