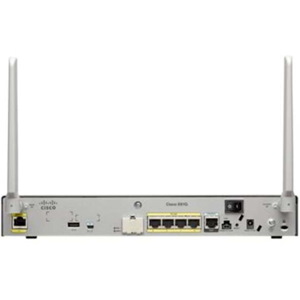

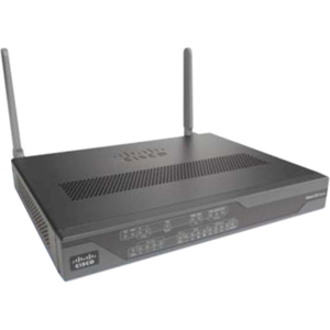

The Cisco 880G Series Integrated Services Router with the embedded third-generation (3G) wireless WAN (WWAN) option provides secure high-speed wireless WAN connectivity to small businesses, enterprise small branch offices, and teleworker sites . Transparently integrated into the enterprise-class feature set available on the Cisco 880 Series, 3G wireless connectivity allows for rapid installation, deployment flexibility, and resilient mobile broadband backhaul for primary and WAN backup.
- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com/c/en_au
- Brand Name
- Cisco
- Product Series
- 880G
- Product Type
- Wireless Integrated Services Router
- Warranty
- Limited Warranty
- 90 Day
- Wireless Specifications
- Broadband Transmission Technology
- Cellular
- ISM Band
- No
- UNII Band
- No
- Cellular Generation
- 3.75G
- Cellular Network Supported
- GSM 1800
- GSM 1900
- GSM 850
- GSM 900
- WCDMA 2100
- WCDMA 1900
- WCDMA 850
- WCDMA 900
- Cellular Data Connectivity Technology
- HSPA+
- HSDPA
- UMTS
- GPRS
- EDGE
- Total Number of Antennas
- 2
- Antenna Type
- Dipole Antenna
- Antenna Connector
- TNC Connector
- Features
- Quality of Service (QoS)
- Interfaces/Ports
- Ethernet Port
- Yes
- Fast Ethernet Port
- Yes
- Gigabit Ethernet Port
- No
- Number of Network (RJ-45) Ports
- 4
- Network (RJ-11)
- No
- VGA
- No
- Serial
- No
- USB
- Yes
- Powerline
- No
- PoE (RJ-45) Port
- Yes
- Management Port
- No
- Number of Broadband (RJ-45) Ports
- 1
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SIM Card
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Management & Protocols
- Management
- CLI
- SNMP
- MIB
- Telnet
- VLAN
- Web-based Management
- Security Features
- Firewall
- Intrusion Prevention
- VPN
- Power Description
- Input Voltage
- 100 V AC
- 240 V AC
- Power Source
- AC Supply
- Physical Characteristics
- Form Factor
- Desktop
- Height
- 44.5 mm
- Width
- 325.1 mm
- Depth
- 248.9 mm
- Weight (Approximate)
- 2.49 kg
- Miscellaneous
- Package Contents
- 887VAG Wireless Integrated Service Router
- 2 x Dipole Antenna
- Certifications & Standards
- IEEE 802.3
- IEEE 802.3u
- PTCRB
- TIA-968-A
- Addendum 1, 2, 3, 4, 5
- IEC 1000-3-2
- UNI 3.1/4.0 PVC
- ITU G.991.2 G.SHDSL
- VCCI Class II
- Australia AS/ACIF S031: 2001
- Australia AS/ACIF S043.1: 2003
- Australia AS/ACIF S043.2: 2006
- AS/NRZ 3548:1992 Class B
- CFR 47 Part 15 Class B
- EN60555-2 Class B
- EN55022 Class B
- ICES-003, Issue 2, Class B, April 1997S
- New Zealand PTC220: 2003
Safety:
- UL 60950-1
- CAN/CSA-C22.2 No. 60950-1
- CAN/CSA 22.2 No. 60950-1-05, Second Edition
- EN 60950-1
- IEC 60950-1
- IEC 60950-1:2005, Second Edition
- AS/NZS 60950.1
- AS/NZS 60950-1:2003, First Edition
- FCC Part 2.1093
- RSS-102
- EN 50385
EMC:
- FCC Part 15
- Industry Canada ICES-003
- Industry Canada CS-03
- EN 301 489-01
- EN 301 489-07
- EN 301 489-24
- EN55022 (CISPR22)
- EN55024 (CISPR24)
- EN300-386
- EN 61000-3-2
- EN 61000-3-3
- AS/NZS CISPR 22
- CNS13438
- VCCI V-3
Radio:
- FCC Part 2
- FCC Part 22
- FCC Part 24
- RSS 129
- RSS 133
- RSS 132
- RSS 133
- EN 301 511 GSM
- EN 301 908-1
- EN 301 908-2
